MongoDB Locking

发表于 2020-11-03 更新于 2020-12-29 分类于 MongoDB

MongoDB Locking

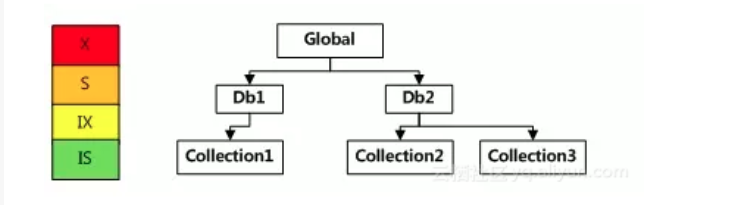

MongoDB uses multi-granularity locking. The available granularity levels in descending order are as follows:

Global
Database
Collection
Document

The locks MongoDB and other databases use are the following in order of granularity:

IS: Intent shared
IX: Intent exclusive
S: Shared
X: Exclusive

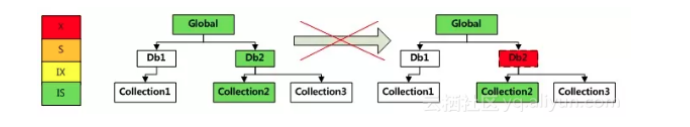

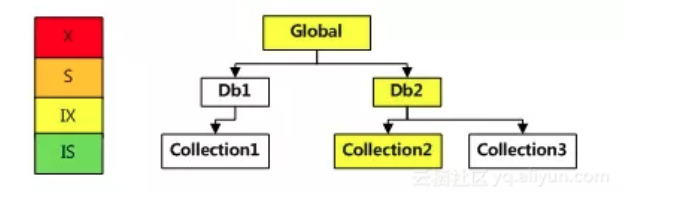

If we use locking at a granularity level with shared (S) or exclusive (X), then all higher levels need to be locked with an intent lock of the same type.

rule

A single database can simultaneously be locked in IS and IX mode
An exclusive (X) lock cannot coexist with any other lock
A shared (S) lock can only coexist with intent shared (IS) locks

MongoDB will first acquire intention locks in all ancestors before acquiring the lock on the document itself. This way, when a new request comes in, many times it can quickly identify if it cannot be serviced based on less granular locks.

WiredTiger 在global，db和collection level使用意向锁，在document level使用S和X锁，例外情况是针对多个database，需要global lock。

Reads and writes requesting locks are generally queued in FIFO (first-in, first-out) order. The only optimization that MongoDB will actually do is reordering requests according to the next request in queue to be serviced.

IS(1)->IS(2)->X(3)->S(4)->IS(5)

reorder：

IS(1)->IS(2)->S(4)->IS(5)->X(3)

但是如果在执行IS(1)对应的请求时，新来了IS和S仍旧需要排队，等到X（3）完成后，防止X starvation。

mongo使用简化版的意向锁，只保留了IS/IX/S/X四种锁状态。

意向锁协议，是一种树形（层级）资源进行并发控制的协议。由操作约定和冲突矩阵组成

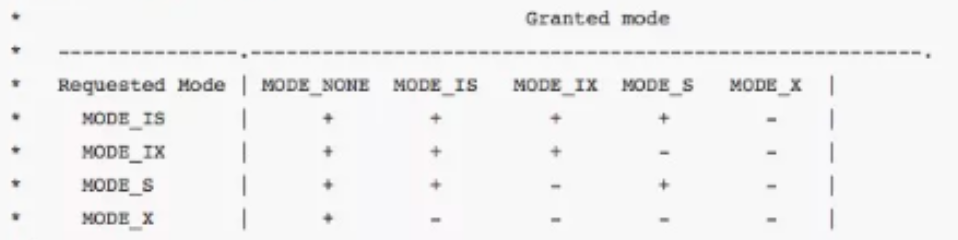

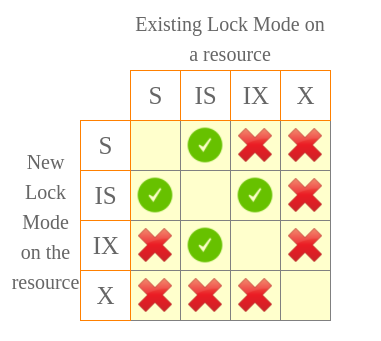

冲突矩阵

注意IX和IS是可以兼容的
