JMS学习笔记之Pub/Sub

This messaging model is used when you need to broadcast an event or message to many message consumers.

Messages are published to a topic as opposed to being sent to a queue as in the point-to-point model

use case:

Eg: stock price updates, exception or error notification, and change notification of a particular data item in the database

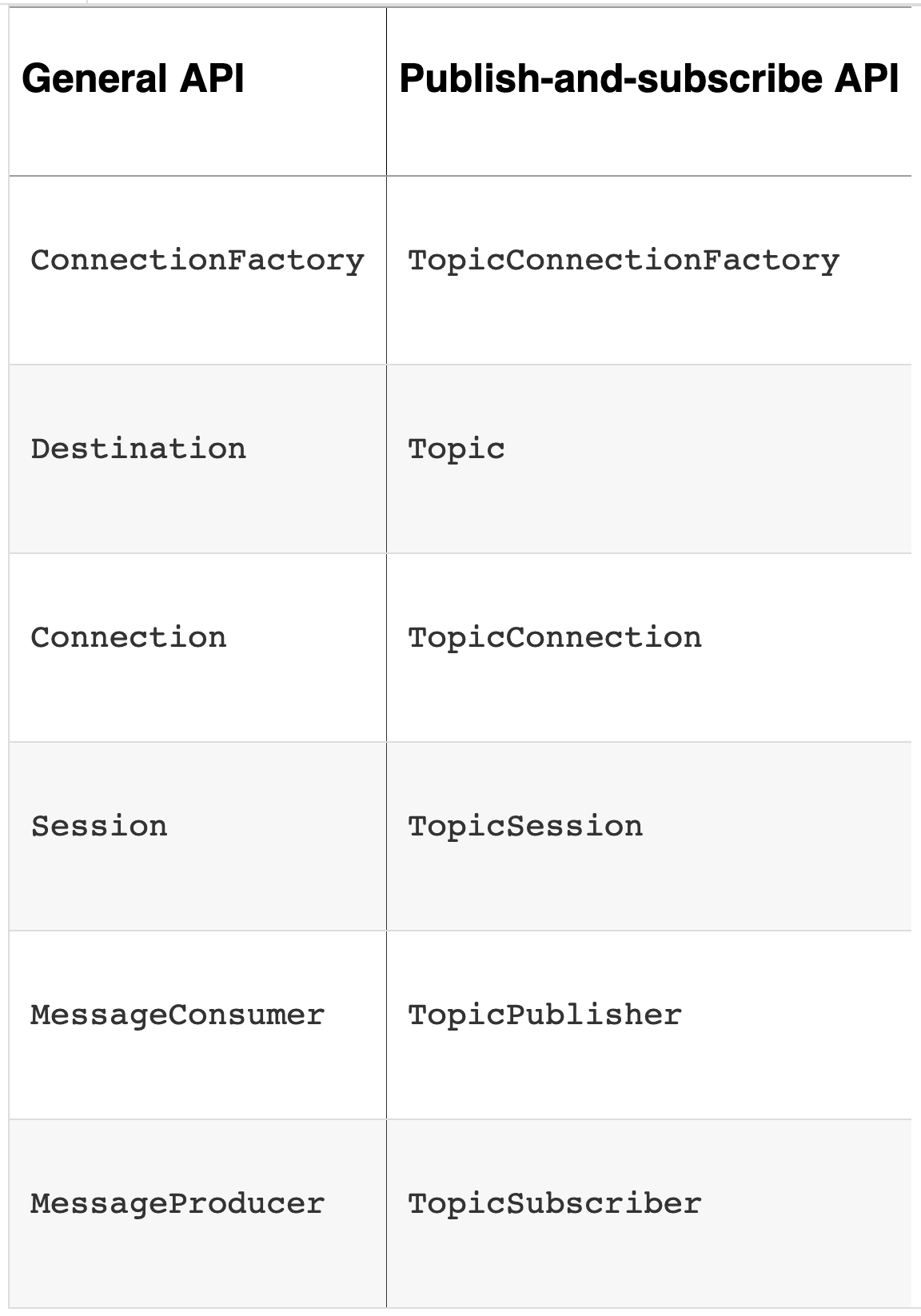

Interface for Topics

Lender

jndi

java.naming.factory.initial = org.apache.activemq.jndi.ActiveMQInitialContextFactory
java.naming.provider.url = tcp://localhost:61616
java.naming.security.principal=system
java.naming.security.credentials=manager

connectionFactoryNames = TopicCF
topic.RateTopic = jms.RateTopic

code

public class TLender {

  private TopicConnectionFactory topicConnectionFactory;
  private TopicConnection topicConnection;
  private TopicSession topicSession;
  private Topic topic;

  public TLender(String topicCf, String topicName) {
    try {
      Context ctx = new InitialContext();
      this.topicConnectionFactory = (TopicConnectionFactory) ctx.lookup(topicCf);
      this.topicConnection = topicConnectionFactory.createTopicConnection();

      // create JMS session
      this.topicSession = topicConnection.createTopicSession(false, Session.AUTO_ACKNOWLEDGE);

      // Look up topic
      this.topic = (Topic) ctx.lookup(topicName);

      // start the connection
      this.topicConnection.start();
    } catch (Exception e) {
      e.printStackTrace();
    }
  }


  private void exit() {
    try {
      this.topicConnection.close();
    } catch (JMSException e) {
      e.printStackTrace();
    }
    System.exit(0);
  }


  private void publishRate(double rate) {
    try {

      // create JMS message
      BytesMessage msg = this.topicSession.createBytesMessage();
      msg.writeDouble(rate);

      // create publish and publish the message
      TopicPublisher topicPublisher = topicSession.createPublisher(this.topic);
      topicPublisher.publish(msg);

    } catch (Exception e) {
      e.printStackTrace();
    }
  }


  public static void main(String[] args) {
    String topicCf = null;
    String topicName = null;
    if (args.length == 2) {
      topicCf = args[0];
      topicName = args[1];
    } else {
      System.out.println("Invalid arguments. Should be: ");
      System.out.println("java TLender factory topic");
      System.exit(0);
    }

    TLender tLender = new TLender(topicCf, topicName);


    try {
      BufferedReader stdin = new BufferedReader
        (new InputStreamReader(System.in));
      System.out.println ("TLender Application Started");
      System.out.println ("Press enter to quit application");
      System.out.println ("Enter: Rate");
      System.out.println("\ne.g. 6.8");

      while (true) {
        System.out.println("> ");
        String rate = stdin.readLine();

        if (rate == null || rate.trim().length() <= 0) {
          tLender.exit();
        }

        double newRate = Double.valueOf(rate);
        tLender.publishRate(newRate);
      }
    } catch (Exception e) {
      e.printStackTrace();
    }

  }
}

Borrower

jndi

java.naming.factory.initial = org.apache.activemq.jndi.ActiveMQInitialContextFactory
java.naming.provider.url = tcp://localhost:61616
java.naming.security.principal=system
java.naming.security.credentials=manager

connectionFactoryNames = TopicCF
topic.RateTopic = jms.RateTopic

code

public class TBorrower implements MessageListener {

  private TopicConnectionFactory topicConnectionFactory;
  private TopicConnection topicConnection;
  private TopicSession topicSession;
  private Topic topic;

  private double currentRate;

  public TBorrower(String topicCf, String topicName, String currentRate) {

    try {
      this.currentRate = Double.valueOf(currentRate);

      Context ctx = new InitialContext();
      this.topicConnectionFactory = (TopicConnectionFactory) ctx.lookup(topicCf);
      this.topicConnection = topicConnectionFactory.createTopicConnection();

      // create JMS session
      this.topicSession = topicConnection.createTopicSession(false, Session.AUTO_ACKNOWLEDGE);

      // lookup for topic destination
      this.topic = (Topic) ctx.lookup(topicName);

      // create message Listener
      TopicSubscriber topicSubscriber = topicSession.createSubscriber(topic);
      topicSubscriber.setMessageListener(this);

      // start the connection
      topicConnection.start();

      System.out.println("Waiting for loan requests...");

    } catch (Exception e) {
      e.printStackTrace();
    }


  }

  private void exit() {

    try {
      this.topicConnection.close();
    } catch (JMSException e) {
      e.printStackTrace();
    }

    System.exit(0);

  }

  @Override
  public void onMessage(Message message) {

    try {
      BytesMessage msg = (BytesMessage) message;
      double newRate = msg.readDouble();

      // if rate is at least 1 point lower than current rate, considering refinancing
      if ((currentRate - newRate) >= 1.0) {
        System.out.println(
          "New rate = " + newRate + " - Consider refinancing loan");
      } else {
        System.out.println("New rate = " + newRate + " - Keep existing loan");
      }

      System.out.println("\nWaiting for rate updates...");

    } catch (Exception e) {
      e.printStackTrace();
    }

  }

  public static void main(String[] args) {

    String topicCf = null;
    String topicName = null;
    String rate = null;
    if (args.length == 3) {
      topicCf = args[0];
      topicName = args[1];
      rate = args[2];
    } else {
      System.out.println("Invalid arguments. Should be: ");
      System.out.println("java TBorrower factory topic rate");
      System.exit(0);
    }

    TBorrower tBorrower = new TBorrower(topicCf, topicName, rate);

    try {
      // Run until enter is pressed
      BufferedReader stdin = new BufferedReader
        (new InputStreamReader(System.in));
      System.out.println("TBorrower application started");
      System.out.println("Press enter to quit application");
      stdin.readLine();
      tBorrower.exit();
    } catch (IOException ioe) {
      ioe.printStackTrace();
    }

  }
}

Testing

cp libs to idea out folder (class file)
java -cp javax.jms_1.1.1.jar:activemq-all-5.15.5.jar:. TLender TopicCF RateTopic
java -cp javax.jms_1.1.1.jar:activemq-all-5.15.5.jar:. TBorrower TopicCF RateTopic 1
java -cp javax.jms_1.1.1.jar:activemq-all-5.15.5.jar:. TBorrower TopicCF RateTopic 5

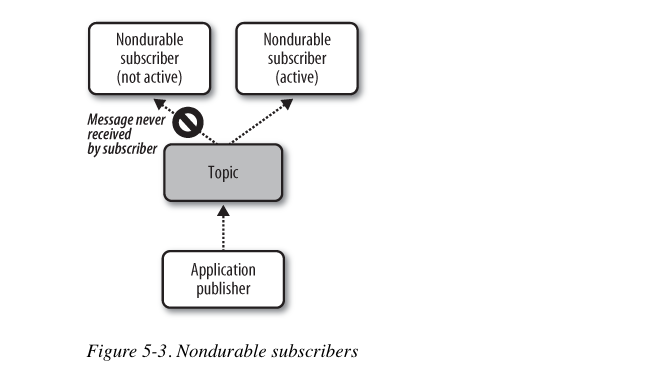

Durable Vs Non-Durable

Nondurable subscribers receive messages only when they are actively listening on that topic. Otherwise, the message is gone.

Durable subscribers, on the other hand, will receive all messages sent to that topic (depending on the message selectors applied to that subscriber), regardless of whether that subscriber is active or not.

“store-and-forward” : similar to email

how to create durable subscriber

TopicSubscriber subscriber = tSession.createDurableSubscriber(topic, "Borrower1");

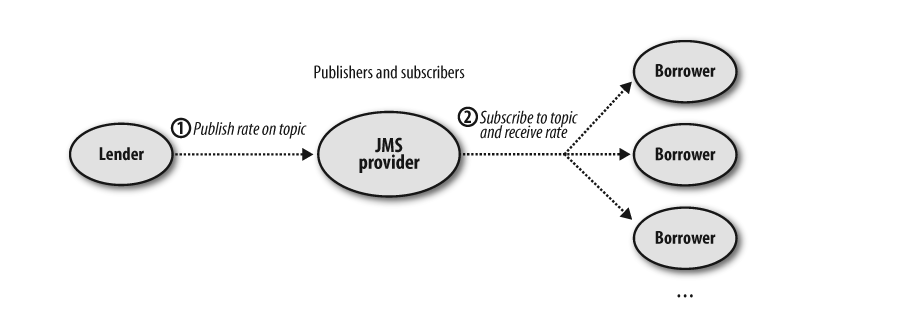

publish-and-subscribe (pub/sub)
